– سوئیچ 8 پورت گیگ و 2 پورت uplink گیگ و 2 پورت SFP گیگ
– سوئیچ PoE صنعتی گیگ
– توان کلی 65 وات
– 48 ماه وارانتی بی قید و شرط (24 ماه گارانتی تعویض + 24 ماه گارانتی تعمیر)
جهت استعلام تماس بگیرید

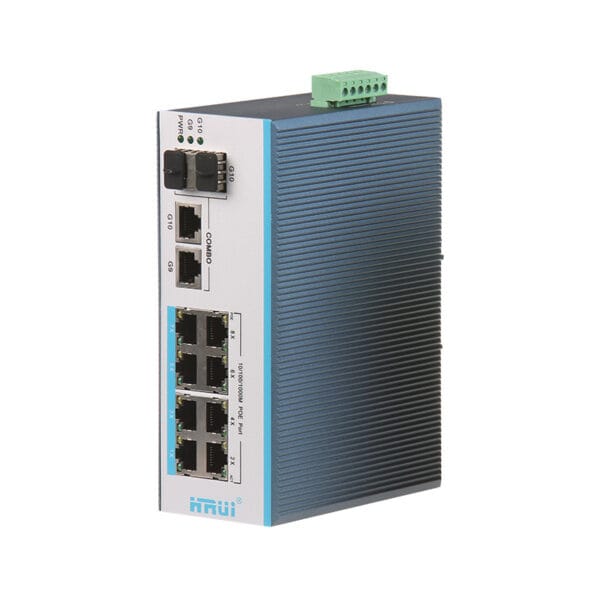

| Product Name | 10- Ports POE Switch 8*Gigabit POE Port +2 Gigabit Combo Port |
| Product Model | HR600-AFG-822S |
| Interface | 8*Gigabit POE Port + 2 Gigabit Combo Port |
| Network Protocols | Support IEEE802.3, IEEE802.3u, IEEE802.3x |
| PoE Specification | PoE Standard: Supports both IEEE802.3af and IEEE802.3at |
| Single PoE Port Power Output:Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at) | |
| PoE port Auto detect AF/AT devices | |
| PoE Port Output Voltage: DC48V | |
| Power Pin Assignment:1/2+;3/6- | |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter)100BASE-TX: Cat5 or later UTP(≤100 meter) |
| Fiber Media | Multi-mode: 1310nm, 2KmSingle-mode: 1310nm, 20/40 Km 1550nm, 60/80/100/120Km |
| Performance Specification | Bandwidth: 20Gbps Packet Buffer Memory:2M 100M Packet Forwarding Rate:148800pps/port MAC: 16K MTBF: 100,000 hours |
| Forwarding Mode | Store-And-Forward |
| LED Display | Fiber Run indicator: FXPower supply indicator: PWR PoE ACT indicator: LED-Yellow PoE LINK indicator: LED-Green |
| Power Supply | Input Voltage: DC48V (48～55V)Type of input: 3 pins terminal block No-load consumption: MAX 5W@ DC52V0.1A Full-load consumption: MAX 65W@ DC52V1.25A (802.3af/at) |
| Working Environment | Working temperature: -40～85℃Storage temperature: -40～85℃ Relative Humidity: 5%~95 % (no condensation) |
| Industry Standard | EMI: FCC Part 15, CISPR (EN55022) class AEMS: EN61000-4-2 (ESD) EN61000-4-4 (EFT) EN61000-4-5 (Surge) Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Mechanical Structure | Shell: IP30 protect grade, metal shellInstallation: DIN-Rail or Wall mounts |
| Certification | CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B |
| Warranty | 5 years |
