– سوئیچ 4 پورت PoE گیگ و 1 پورت Uplink گیگ اترنت و 1 پورت Uplink گیگ SFP
– سوئیچ PoE صنعتی گیگ
– توان کل 130 وات
– 48 ماه وارانتی بی قید و شرط (24 ماه گارانتی تعویض + 24 ماه گارانتی تعمیر)
جهت استعلام تماس بگیرید

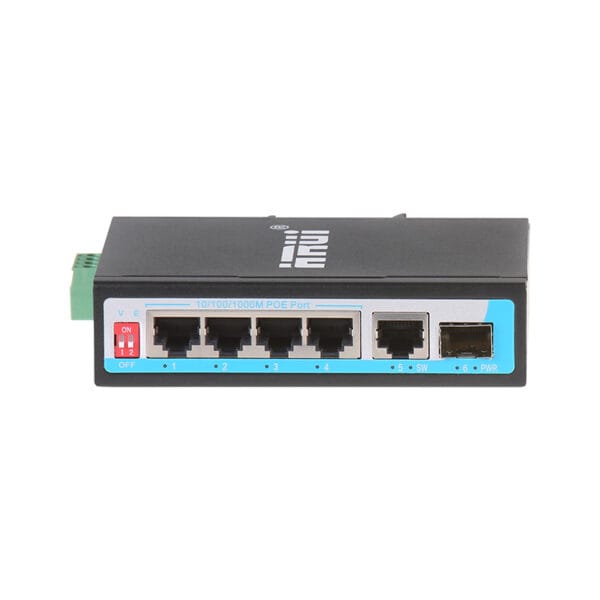

| Product Name | 6 Ports POE Switch 4 *Gigabit POE Port +1 * Gigabit Uplink | |||||||
| Product Model | HR500-AFG–411S | |||||||
| Interface | 4 *Gigabit POE Port +1 * Gigabit Uplink port+ 1* Gigabit SFP Port | |||||||
| Network Protocols | Support IEEE802.3, IEEE802.3u, IEEE802.3x | |||||||
| PoE Specification | PoE Standard: Supports both IEEE802.3af and IEEE802.3at | |||||||
| Single PoE Port Power Output: Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at) | ||||||||
| PoE port Auto detect AF/AT devices | ||||||||
| PoE Port Output Voltage: DC48V | ||||||||
| Power Pin Assignment:1/2+;3/6– | ||||||||
| Network Media | 10BASE–T: Cat3,4,5 UTP(≤100 meter) 100BASE–TX: Cat5 or later UTP(≤100 meter) | |||||||
| Fiber Media | Multi–mode: 1310nm, 2Km Single-mode: 1310nm, 20/40 Km 1550nm, 60/80/100/120Km | |||||||
| Performance Specification | Bandwidth: 12Gbps Packet Buffer Memory:1M 100M Packet Forwarding Rate:148800pps/port Address Table: 8K Package Size :10K MTBF: 100,000 hours | |||||||
| Forwarding Mode | Store-And–Forward | |||||||
| LED Display | PWR | Power supply indicator(Red) | Lighting：Power on No Lighting：Equipment is no powered | |||||
| SW | DIP indicator (Green) | 1 | 2 | Status | Model | |||
| Down | Down | Light off | Standard exchange | |||||
| Up | Down | Light on | VLAN | |||||
| Down | Up | Slow Flashing | Tag Vlan | |||||
| Up | Down | Quick Flashing | VLAN | |||||
| 1-6 | RJ–45 ACT light (Green) | Lighting：Connecting Flashing：Data Transmitt Un–light：Disconnect | ||||||
| Power Supply | Input Voltage: DC48V (48～55V) Type of input: 4 bits terminal block No–load consumption: MAX 5W@ DC52V0.1A Full–load consumption: MAX 65W@ DC52V1.25A (802.3af) Full–load consumption: MAX 104W@ DC52V2A (802.3af+) Full–load consumption: MAX 130W@ DC52V2.5A (802.3at) | |||||||
| Working Environment | Working temperature: –40～85℃ Storage temperature: –40～85℃ Relative Humidity: 5%~95 %( no condensation) | |||||||
| Industry Standard | EMI: FCC Part 15, CISPR (EN55022) class A EMS: EN61000–4–2 (ESD) EN61000–4-4 (EFT) EN61000–4-5 (Surge) Shock: IEC 60068–2–27 Free fall: IEC 60068–2–32 Vibration: IEC 60068–2-6 | |||||||
| Mechanical Structure | Shell: IP30 protect grade, metal shell Installation: DIN-Rail | |||||||
| Certification | CE Mark, Commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B | |||||||
| Warranty | 5 years | |||||||
