– سوئیچ 8 پورت PoE گیگ و 2 پورت Uplink اترنت گیگ و 2 پورت Uplink SFP و 1 پورت کنسول
– سوئیچ PoE صنعتی مدیریتی لایه 2
– 48 ماه وارانتی بی قید و شرط (24 ماه گارانتی تعویض + 24 ماه گارانتی تعمیر)
جهت استعلام تماس بگیرید
| Specification | ||||

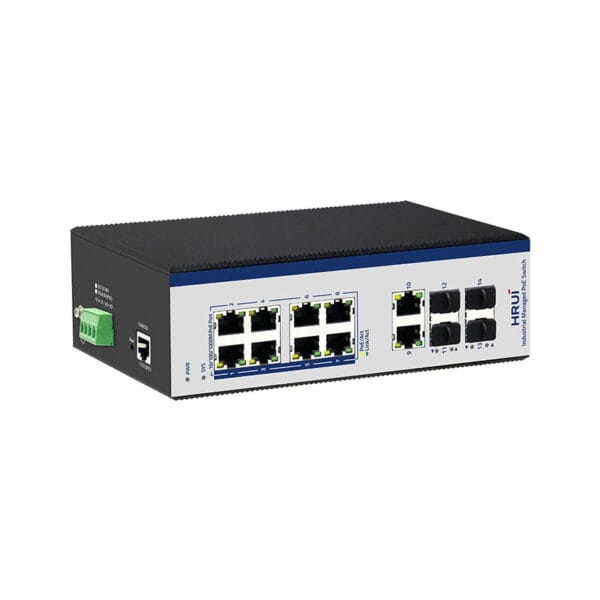

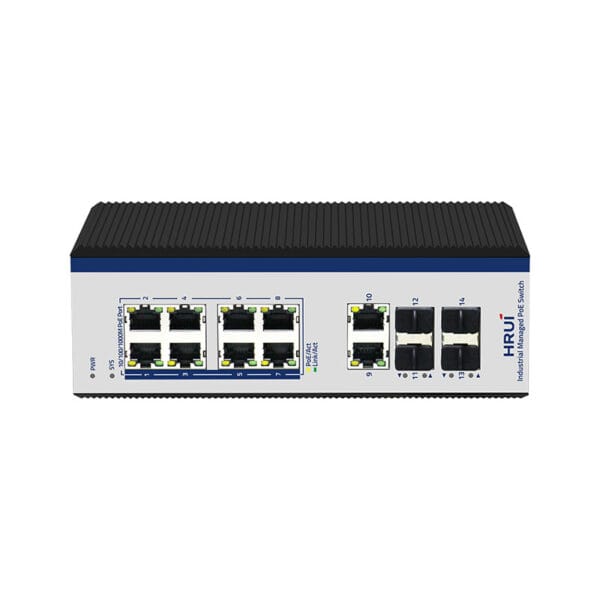

| Product Name | 14 Ports Gigabit Industrial Managed PoE Switch | |||
| Product Model | HR600-AFGM-SWG20824AS | |||
| Port Definition | 8 Gigabit PoE Ports + 2 Gigabit Uplink Port+ 4 Gigabit SFP Port | |||
| Network Protocols | IEEE802.3 | |||
| IEEE802.3u | ||||
| IEEE802.3z | ||||
| IEEE802.3ab | ||||
| IEEE802.3x | ||||
| IEEE802.1d | ||||
| IEEE802.1w | ||||
| PoE Parameters | PoE Standard: IEEE802.3af/IEEE802.3at | |||
| Single PoE Port Power Output: Max: 15.4 W (IEEE 802.3af) Max: 30 W (IEEE 802.3at) | ||||
| PoE Compatibility: IEEE 802.3af/at adaptive | ||||
| PoE Power Output: DC 48-55V | ||||
| PoE Power Pin: 1/2- ; 3/6+ | ||||
| Network Media | 10BASE-T: Cat3, 4, 5 UTP(≤100 M) | |||
| 100BASE-TX: Cat5 or above UTP(≤100 M) | ||||
| 1000BASE-TX: Cat5 or above UTP(≤100 M) | ||||
| Fiber Media | Multi-mode: 850nm, 1310nm Transmission Distance: 550m/2Km | |||
| Single-mode: 1310nm, 1550nm Transmission Distance: 20/40/60/80/100/120Km | ||||
| LED Indicator | PWR | Lighting: Powered | ||
| Un-Light: No Power | ||||
| SYS | Lighting: System is operating normally | |||
| Un-Light: System is not running | ||||
| Yellow light | Lighting: PoE Powered | |||
| Un-Light: No PoE Powered | ||||
| Green light | Slow Flashing: 10/100/1000 Link normally | |||
| Un-Light: Link disconnect | ||||
| Flashing: Link data transmission | ||||
| G11-G14 | Lighting: Fiber Connection is Normal | |||
| Un-Light: Disconnect | ||||
| Flashing: Link data transmission | ||||
| Power Supply | Input Voltage: DC 48～55V | |||
| Type of input: 4 PIN Industrial Terminal(block V1+V1- V2+ V2-) | ||||
| Physical structure | Protect grade: IP40 | |||
| Installation: DIN Rail | ||||
| Product weight: 1 KG Package weight: 1.3KG（Without power） | ||||
| Produc Dimensions(L×W×H): 188mm*130mm*64mm | ||||
| Package Dimensions(L×W×H): 245mm×207mm×86mm | ||||
| Standard packing(L×W×H): 445mm×445 mm×510mm | ||||
| Standard packing quantity: 20 (PCS) | ||||
| Working Environment | Operating temperature: -40～85℃ | |||
| Storage temperature: -40～85℃ | ||||
| Humidity: 5%~95 % ( No condensation) | ||||
| Industry Standard | EMI: FCC Part 15, CISPR (EN55032) class A | |||
| EMS: EN61000-4-2 (ESD) | ||||
| EN61000-4-4 (EFT) | ||||
| EN61000-4-5 (Surge) | ||||
| Certification | CE , FCC , ROHS | |||
| MTBF | 100, 000 hours | |||
| Packing list | 1. Industrial grade switch: 1 Set | |||
| 2. Instruction manual: 1 PCS | ||||
| 3. Certificate, warranty card: 1 PCS | ||||
| 4. Serial cable: 1PCS | ||||
| 5. Operation manual CD: 1 PCS | ||||
| Warranty | 5 years | |||
| Hardware Parameters | ||||
| Bandwidth | 28Gbps | |||
| Packet Forwarding Rate | 20.83Mpps | |||
| Packet Buffer Memory | 4M | |||
| RAM | 128MB | |||
| Flash | 16MB | |||
| VLANs | 4096 | |||
| MAC | 8K | |||
| Jumbo frame | 9.6Kbytes | |||
| Forwarding Mode | Store-And-Forward | |||
| Software Function | ||||
| Menu Items | Submenus | Secondary Submenus | Triple Submenus | |
| Information & Status | System Information | |||
| IP Status | ||||
| Syslog | ||||
| Detailed Syslog | ||||
| MAC Table | ||||
| VLANs | Membership | |||
| Ports | ||||
| Ports | Traffic Overview | |||
| Detailed Statistics | ||||
| LACP | System Status | |||
| Port Status | ||||
| Port Statistics | ||||
| Green Ethernet | ||||
| LLDP | Nei***ors | |||
| Port Statistics | ||||
| Loop Protection | ||||
| Spanning Tree | Bridge Status | |||
| Port Status | ||||
| Port Statistics | ||||
| IGMP Snooping | Status | |||
| Groups Information | ||||
| IPv4 SFM Information | ||||
| MLD Snooping | Status | |||
| Groups Information | ||||
| IPv6 SFM Information | ||||
| DHCP | Server | Statistics | ||
| Binding | ||||
| Declined IP | ||||
| Snooping Table | ||||
| Relay Statistics | ||||
| Detailed Statistics | ||||
| Security | Port Security | Switch | ||
| Port | ||||
| Access Management Statistics | ||||
| 802.1X | Switch | |||
| Port | ||||
| ACL Status | ||||
| AAA | RADIUS Overview | |||
| RADIUS Details | ||||
| QoS | QoS Statistics | |||
| QCL Status | ||||
| Network Admin | IP Config | |||
| IP Status | ||||
| DHCPServer | Mode | |||
| Excluded IP | ||||
| Pool | ||||
| NTP | ||||
| Timezone | ||||
| SNMP | System | |||
| Trap | ||||
| Communities | ||||
| Users | ||||
| Groups | ||||
| Views | ||||
| Access | ||||
| Syslog | ||||
| Port Configure | Ports | |||
| Aggregation | Static | |||
| LACP | ||||
| Mirroring | ||||
| Green Ethernet | ||||
| DDM | DDM Configuration | |||
| DDM Overview | ||||
| DDM Detailed | ||||
| PoE | PoE Setting | |||
| PoE Status | ||||
| Advanced Configure | MAC Table | |||
| VLANs | ||||
| GVRP | Global config | |||
| Port config | ||||
| Port Isolation | Port Group | |||
| Port Isolation | ||||
| Loop Protection | ||||
| Spanning Tree | Bridge Setting | |||
| MSTI Mapping | ||||
| MSTI Priorities | ||||
| CIST Ports | ||||
| MSTI Ports | ||||
| IPMC Profile | Profile Table | |||
| Address Entry | ||||
| MEP | ||||
| ERPS | ||||
| IGMP Snooping | Basic Configuration | |||
| VLAN Configuration | ||||
| Port Filtering Profile | ||||
| IPV6 MLD Snooping | Basic Configuration | |||
| VLAN Configuration | ||||
| Port Filtering Profile | ||||
| LLDP | ||||
| Security Configure | Users | |||
| Privilege Levels | ||||
| SSH | ||||
| Port Security Limit | ||||
| Access Management | ||||
| 802.1X | ||||
| ACL | Ports | |||
| Rate Limiters | ||||
| Access Control List | ||||
| DHCP | Snooping Setting | |||
| Snooping Table | ||||
| Relay | ||||
| Relay Statistics | ||||
| Detailed Statistics | ||||
| IP&MAC Source Guard | Configuration | |||
| Static Table | ||||
| Dynamic Table | ||||
| ARP Inspection | Port Configuration | |||
| VLAN Configuration | ||||
| Static Table | ||||
| Dynamic Table | ||||
| AAA | RADIUS | |||
| TACACS+ | ||||
| QoS Configure | Port Classification | |||
| Port Policing | ||||
| Queue Policing | ||||
| Port Scheduler | ||||
| Port Shaping | ||||
| Port Tag Remarking | ||||
| Port DSCP | ||||
| DSCP-Based QoS | ||||
| DSCP Translation | ||||
| DSCP Classification | ||||
| QoS Control List | ||||
| Storm Policing | ||||
| Diagnostics | Ping | |||
| Cable Diagnostics | ||||
| CPU Load | ||||
| Maintenance | Restart Device | |||
| Factory Defaults | ||||
| Firmware Upgrade | ||||
| Firmware Select | ||||
| Configuration | Download | |||
| Upload | ||||
| Activate | ||||
| Delete | ||||
